Papildoma informacija

Main

range nameSedna

RangeSedna

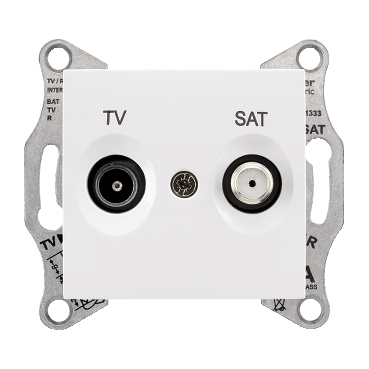

functionTV/SAT socket

delivery formWithout frame

TV socket typeEnd-of-line (terminal socket)

cover plate colorWhite

Complementary

TV connector type1 male IEC 9.52 mm

SAT connector type1 F type

Number of outputs2

Through loss1 dB

Attenuation1 dB TV 5…862 MHz
1 dB SAT 950…2400 MHz

Connections - terminalsScrew terminals

material of visible partsThermoplastic ABS-UV stabilised

kind of terminalsGlossy

installationFlush

Fixing modeClaws, span of claws working range 55…70 mm
Screws

Height70 mm

Width64 mm

Depth40,5 mm

depth of visual part17,4 mm

Product weight0,10236 kg

Environment

conformity markCE

IP degree of protectionIP20
